Minimoog Model-D Keyboard Replacement Kit

by mLab.midisoft.de

1. Polyphonic FATAR Premium Keyboard TP/9S with 44 keys, Velocity and AfterTouch

FATAR Minimoog Premium Keyboard  TP/9S

2. Plug & Play analog processor module for FATAR Keyboards

with a 20 pin micromatch connector

Minimoog Keyboard Processor FATAR micromatch 20 bottom FATAR Analog Processor TOPMinimoog Keyboard Processor FATAR micromatch 20 top
or with 2x16 pin micromatch connectors
Minimoog Keyboard Processor FATAR micromatch 2x16  bottom Minimoog Keyboard Processor FATAR micromatch 2x16 top

3. MIDI-I/O and Sustain Pedal connector panel

Minimoog hidden MIDI connection top Minimoog hidden MIDI connection top

No drills are needed!
Just mount the panel within the Minimoog‘s cable lead-through opening behind the Wheel block.

4. Main Controls

Minimoog cable lead-through opening, behind the wheels
CV1 Note CV from Kbd & MIDI
CV2 VCF or VCA from MIDI cc#7
Gate from Kbd & MIDI
Pedal to MIDI cc#64
Pressure Kbd to MIDI
Velocity Kbd to MIDI
LFO1 AC-LFO to CV1 MIDI controlled (see MIDI implementation chart)
LFO2 DC-LFO to CV2 MIDI controlled (see MIDI implementation chart)




Minimoog Keyboard Wiring

FATAR TP/9S with micromatch 20 connector

FATAR micromatch 20

FATAR TP/9S with Plug & Play minimoog keyboard processor

FATAR Minimoog Plug & Play Keyboard Processor
Minimoog Keyboard wiring

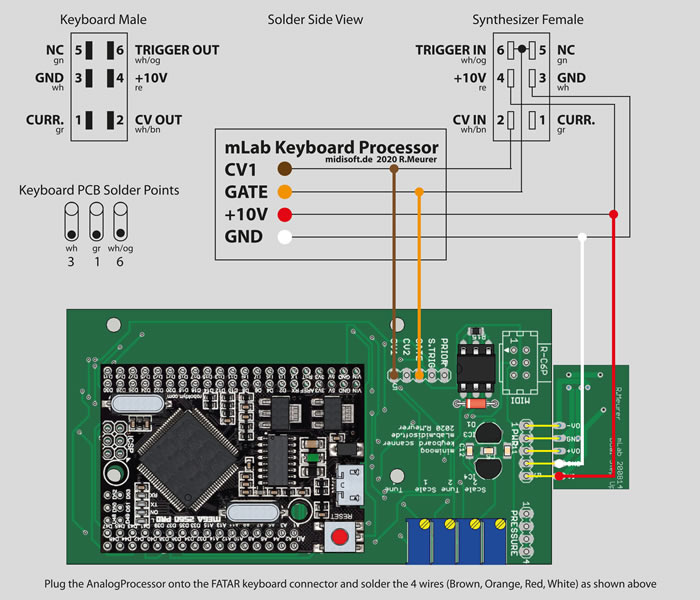

Minimoog Keyboard Processor wiring




MIDI implementation chart

all cc#, marked with  pf , provides parameter feedback for external MIDI hardware

Play controls

cc# 1: Modulation   0..127 LFO1 AMT
cc# 2: Breath Control   0..127 LFO2 AMT
cc# 7: Volume Control   0..127 CV2
cc# 123: All Notes Off

Modulation controls

cc# 76:  pf  LFO1_FREQ   0..127 (0.8..10Hz) default=63
cc# 77:  pf  MOD1_AMT   0..127 maxim LFO1 amount default=63
cc# 78:  pf  LFO1_WAVE   0..4 Sine,Tri,Saw,Ramp,Square default=0
cc# 91:  pf  LFO2_FREQ   0..127 (0.2..10Hz) default=63
cc# 92:  pf  MOD2_AMT   0..127 maxim LFO2 amount default=63
cc# 93:  pf  LFO2_WAVE   0..4 Sine,Tri,Saw,Ramp,Square default=0

Global settings

cc# 90:  pf  VelocityControl   0 >63 MIDI In Vel. to CV2 on/off default=0
cc# 107:  pf  PitchRate   0..12 half tones default=2
cc# 110:  pf  Trigger   0..1 single/multi default=0
cc# 111:  pf  Priority   1..3 lowest, highest, last default=1
cc# 115:  pf  Gate_Time   0..120 2..32ms >120 = Sustain default=127
cc# 126:  pf  TX_CHANNEL   0..16 where 0 = No MIDI OUT default=1
cc# 127:  pf  RX_CHANNEL   0..16 where 0 = OMNI MODE default=0

Mode control

cc# 112:  pf  MODE   0..5 Kbd, Arp, Phrase, Seq-Play, -Edit, -Create default=0

Sequence storage control

cc# 87: LoadSequence   >63 from non volatile memory
cc# 88: SaveSequence   >63 to non volatile memory

Sequencer functions in Edit and Create mode

cc# 20: PAUSE NOTE   >63 PAUSE instead of Note
cc# 21: UNDO last step   >63 decrease seq length
cc# 22: FIRST position   >63 goto 1st sequence position
cc# 23: REDO last step   >63 increase seq Length
cc# 24: STEP DOWN   >63 go one step back
cc# 25: STEP UP   >63 go one step ahead
cc# 26: REPLACE   >63 replace by playing a note
cc# 27: LAST position   >63 goto last sequence position
cc# 28: INSERT   >63 insert by playing a note
cc# 29: DELETE   >63 delete current event
cc# 30: DIAL   0..seq-size dial through the sequence

Play controls (Arpeggiator, Phraser, Sequencer)

cc# 114:  pf  Clock_Rate   0..127 84..200 BPM default=63
cc# 106:  pf  MIDI-SyncEnable   >63 enable/disable default=127
cc# 116:  pf  MIDI-Sync_Delay   0..127 +/- 1/2 SyncRate default=0
cc# 117:  pf  MIDI-Sync_Rate   0…8 48,32,24,16,12,8,6,4,3 default=6
cc# 119:  pf  MIDI-Out   0..1 enable/disable default=0

Play controls (Arpeggiator, Phraser)

cc# 108:  pf  Direction   1..3 up, down, both default=1
cc# 109:  pf  Octaves   1..3 octaves default=1
