Yamaha VX 535 Virago uses

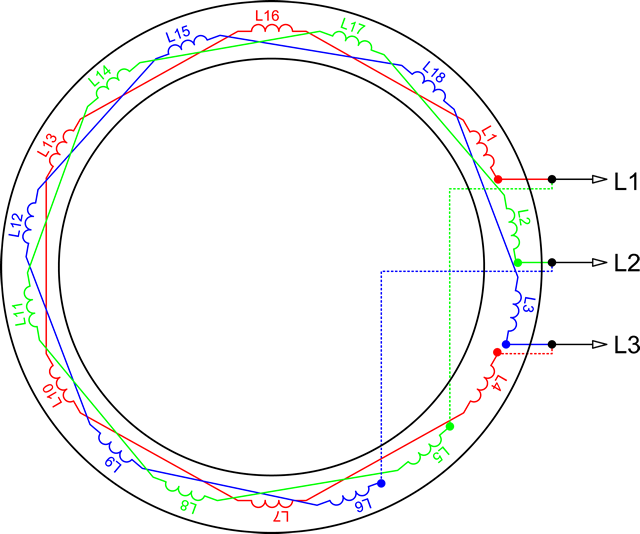

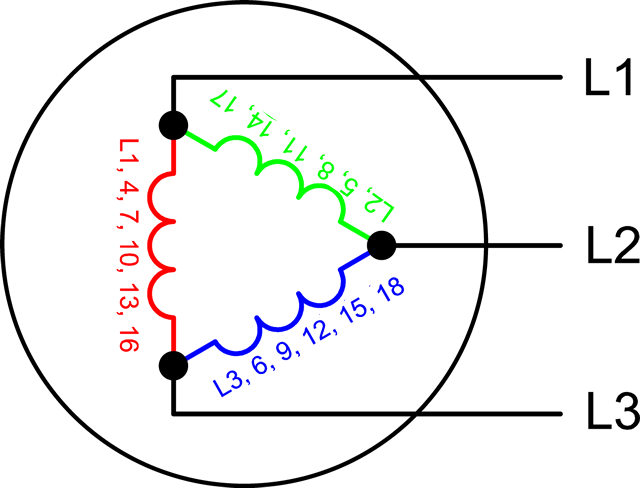

Delta connected stator wiring
Yamaha VX535 Virago Lima schematic-1 Yamaha VX535 Virago Lima schematic-2
Yamaha VX535 Virago Lima schematic-3 Yamaha VX535 Virago Lima schematic-4





Other Motor Cycles use

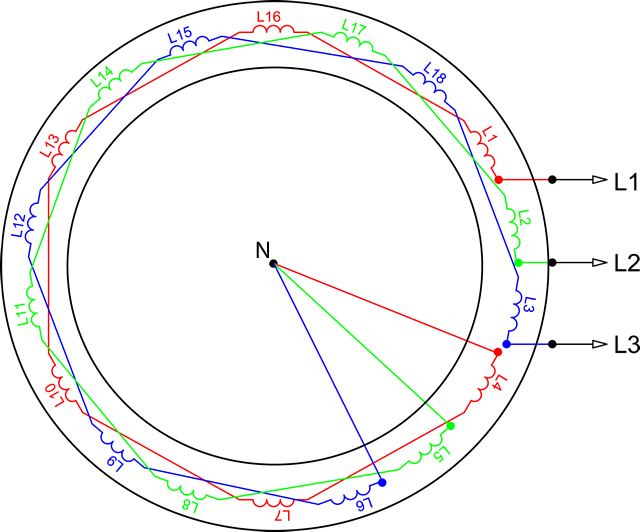

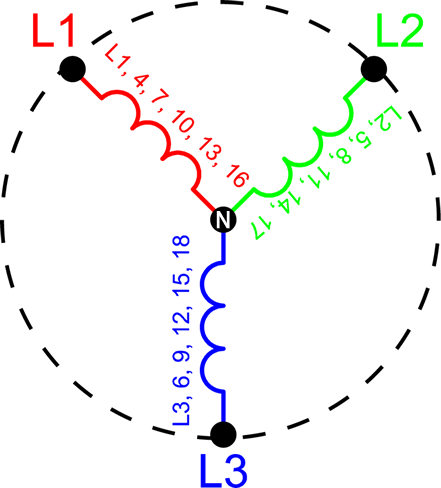

Y connected stator wiring
Yamaha VX535 Virago Lima schematic-5 Yamaha VX535 Virago Lima schematic-6
Yamaha VX535 Virago Lima schematic-7 Yamaha VX535 Virago Lima schematic-8
