| Keyboard |

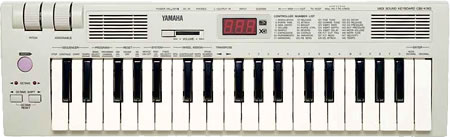

37 mini key keyboard (C2-C5), velocity responsive. |
| Basic Functions |
Octave Shift (+/- 4 octaves), Pitch Bend, Assignable control, MIDI merge,
Local. |
| Assignable Parameters |
Transpose (+/- 12 semitones), MIDI Transmit Channel, Fixed Velocity, Touch
Sensitivity, Device Number, Merge On/Off (each channel). |
| Tone Generator |
AWM2 (Advanced Wave Memory 2). |
| Simultaneous Polyphony |
Max. 32-note (last-note priority). |
| Multitimbral Capacity |
16-Part (Dynamic Voice Allocation). |
| Internal Voices |
737 Normal Voices +22 Drum Voice Sets. |
| Effects |
Reverb (11 types), Chorus (11 types), Variation (42 types). |
| Sound Module Mode |
XG, TG300B, C/M, DOC. |
| Display |
LED (3-digit, 8-segment). |
| Input/Output Terminals |
INPUT, OUTPUT L/R, PHONES, MIDI IN/OUT, SUSTAIN, TO HOST, DC IN. |
| Power Supply |
Yamaha PA-3B, PA-1207 or equivalent AC power adaptor (supplied), or six
"LR6" size batteries (sold separately). |
| Dimensions |
(WxDxH) 509 x 155 x 55mm (20-1/16" x 6-1/8" x 2-3/16") |
| Weight |
(without batteries) 1.5 kg (3.3 lbs) |
