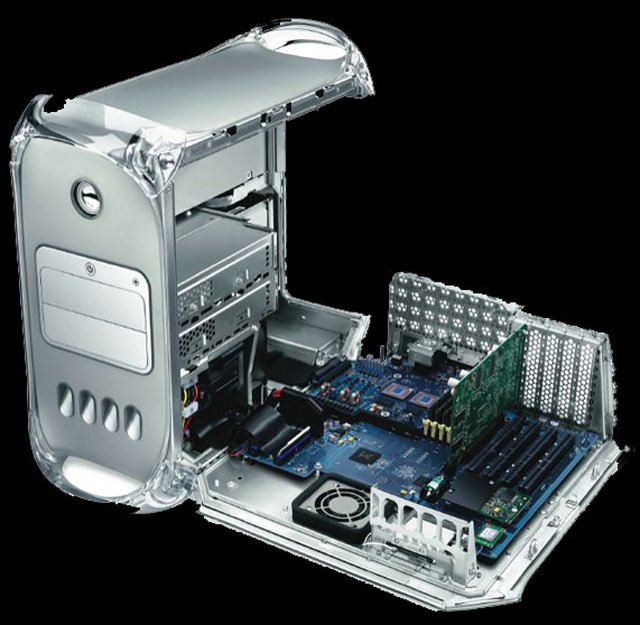

Power Mac G4 (Mirrored Drive Doors 2003)

Technical Specifications M9145

Processor G4 1.25 GHz (single)

• L2 Cache 256 KB (1:1)
• -L3 Cache 1 MB


Memory 256 MB

• Maximum 2 GB
• Slots 4 SDRAM (PC2700 - DDR333)


Hard Drive 80 GB

• Type (Speed) Ultra ATA/100 (7200 rpm)
• Maximum Internal Drives 4


Optical Drive Combo Drive (tray)

• DVD Decoding software
• Read/Write DVD-ROM read 8x, CD-ROM read 32x, CD-RW write 10x, CD-R write 16x


Network

• USB 1.1 2
• FireWire 400 2
• EtherNet (built-in) 1000Base-T
• Auto-MDIX
• Modem v.92 (USB)
• Wireless Networking AirPort (optional)

Expansion Slots

• 4 PCI slots


Display

• ATI Radeon 9000 Pro

• VRAM 64 MB DDR
• AGP 4x
• Max Resolution Resolution (Digital): 1920x1200, Resolution (Analog): 1600x1200
• Video External Connectors ADC + DVI

Connectors

• Audio Line Out
• Audio Line In
• Speakers built-in mono
• Headphone
• Pro Speakers

Video Adapters

• DVI to VGA

Software

• OS: 10.2.4 / 9.2.2
• Classic Support: 9.2.2 (bootable)
• OS Install/Restore: DVD (Install/Restore)
• Apple Hardware Test: Power Mac v2.0.2 (separate CD)

Size (Height/Width/Depth) 17.0" x 8.9" x 18.4" (43.2cm x 22.6cm x 46.7cm)
Weight 42 lbs. (19.1 kg)
