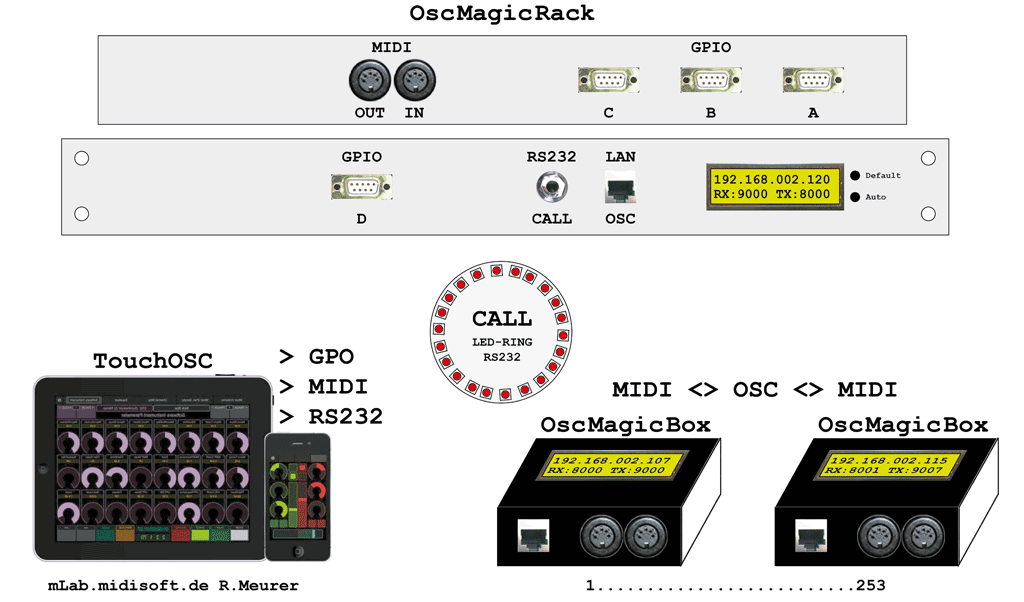

OSC magic
OSC, MIDI, GPIO, RS232
|
|
OSC → MIDI |
1-Byte Message |
|---|---|---|
| OSC[Index] | Inhalt / Bedeutung | Wert / Kommentar |
| OSC[0] | / | Start OSC-Pfad |
| OSC[1] | O | - |
| OSC[2] | M | - |
| OSC[3] | I | - |
| OSC[4] | / | Delimiter |
| OSC[5] | F | Status MSN (High Nibble) |
| OSC[6] | A | Status LSN (Low Nibble) |
| OSC[7] | 0 | Null-Terminator für Status |
| OSC[8] | , | Argumenten-Delimiter |
| OSC[9] | f | Typ Float32 |
| OSC[10] | 0 | Null-Terminator |
| OSC[11] | 0 | Null-Terminator |
| OSC[12] | Float32 – Byte 1 / MSB | Dummy = 0xBF |
| OSC[13] | Float32 – Byte 2 | Dummy = 0x80 |
| OSC[14] | Float32 – Byte 3 | Dummy = 0 |
| OSC[15] | Float32 – Byte 4 / LSB | Dummy = 0 |
|
|
OSC → MIDI |
2-Byte Message |
|---|---|---|
| OSC[Index] | Inhalt / Bedeutung | Wert / Kommentar |
| OSC[0] | / | Start OSC-Pfad |
| OSC[1] | O | - |
| OSC[2] | M | - |
| OSC[3] | I | - |
| OSC[4] | / | Delimiter |
| OSC[5] | C | Status High Nibble (C, D, F) |
| OSC[6] | 0 | Status Low Nibble (0-F) |
| OSC[7] | 0 | Null-Terminator für Status |
| OSC[8] | , | Argumenten-Delimiter |
| OSC[9] | f | Typ Float32 |
| OSC[10] | 0 | Null-Terminator |
| OSC[11] | 0 | Null-Terminator |
| OSC[12] | Float32 – Byte 1 / MSB | Data 1 High Byte (Big-Endian) |
| OSC[13] | Float32 – Byte 2 | Data 1 Byte 1 |
| OSC[14] | Float32 – Byte 3 | Data 1 Byte 2 |
| OSC[15] | Float32 – Byte 4 / LSB | Data 1 Low Byte (Big-Endian) |
OSC → MIDI |
3-Byte Message |
|
|---|---|---|
| OSC[Index] | Inhalt / Bedeutung | Wert / Kommentar |
| OSC[0] | / | Start OSC-Pfad |
| OSC[1] | O | - |
| OSC[2] | M | - |
| OSC[3] | I | - |
| OSC[4] | / | Delimiter |
| OSC[5] | 9 | Status High Nibble (8,9,A,B,E,F) |
| OSC[6] | 0 | Status Low Nibble (0-F) |
| OSC[7] | Leerzeichen | |
| OSC[8] | 7 | Data 1 High Nibble (0–7) |
| OSC[9] | F | Data 1 Low Nibble (0-F) |
| OSC[10] | 0 | Null-Terminator |
| OSC[11] | 0 | Null-Terminator |
| OSC[12] | , | Argumenten-Delimiter |
| OSC[13] | f | Typ Float32 |
| OSC[14] | 0 | Null-Terminator |
| OSC[15] | 0 | Null-Terminator |
| OSC[16] | Float32 – Byte 1 / MSB | Data 2 High Byte |
| OSC[17] | Float32 – Byte 2 | Data 2 Byte 1 |
| OSC[18] | Float32 – Byte 3 | Data 2 Byte 2 |
| OSC[19] | Float32 – Byte 4 / LSB | Data 2 Low Byte |
MIDI → OSC |
1-Byte Message |
|
|---|---|---|
| OSC[Index] | Inhalt / Bedeutung | Wert / Kommentar |
| OSC[0] | / | Start OSC-Pfad |
| OSC[1] | O | - |
| OSC[2] | M | - |
| OSC[3] | B | - |
| OSC[4] | / | Delimiter |
| OSC[5] | 0 | Null-Terminator |
| OSC[6] | 0 | Null-Terminator |
| OSC[7] | 0 | Null-Terminator |
| OSC[8] | , | Argumenten-Delimiter |
| OSC[9] | i | Typ Int32 |
| OSC[10] | 0 | Null-Terminator |
| OSC[11] | 0 | Null-Terminator |
| OSC[12] | Int32 – Byte 1 / MSB | Status High Byte (Big-Endian) |
| OSC[13] | Int32 – Byte 2 | Status Byte 1 |
| OSC[14] | Int32 – Byte 3 | Status Byte 2 |
| OSC[15] | Int32 – Byte 4 / LSB | Status Low Byte (Big-Endian) |
MIDI → OSC |
2-Byte Message |
|
|---|---|---|
| OSC[Index] | Inhalt / Bedeutung | Wert / Kommentar |
| OSC[0] | / | Start OSC-Pfad |
| OSC[1] | O | - |
| OSC[2] | M | - |
| OSC[3] | B | - |
| OSC[4] | / | Delimiter |
| OSC[5] | 0 | Null-Terminator |
| OSC[6] | 0 | Null-Terminator |
| OSC[7] | 0 | Null-Terminator |
| OSC[8] | , | Argumenten-Delimiter |
| OSC[9] | i | Typ Int32 |
| OSC[10] | i | Typ Int32 |
| OSC[11] | 0 | Null-Terminator |
| OSC[12] | Int32 – Byte 1 / MSB | Status High Byte (Big-Endian) |
| OSC[13] | Int32 – Byte 2 | Status Byte 1 |
| OSC[14] | Int32 – Byte 3 | Status Byte 2 |
| OSC[15] | Int32 – Byte 4 / LSB | Status Low Byte (Big-Endian) |
| OSC[16] | Int32 – Byte 1 / MSB | Data 1 High Byte (Big-Endian) |
| OSC[17] | Int32 – Byte 2 | Data 1 Byte 1 |
| OSC[18] | Int32 – Byte 3 | Data 1 Byte 2 |
| OSC[19] | Int32 – Byte 4 / LSB | Data 1 Low Byte (Big-Endian) |
MIDI → OSC |
3-Byte Message |
|
|---|---|---|
| OSC[Index] | Inhalt / Bedeutung | Wert / Kommentar |
| OSC[0] | / | Start OSC-Pfad |
| OSC[1] | O | - |
| OSC[2] | M | - |
| OSC[3] | B | - |
| OSC[4] | / | Delimiter |
| OSC[5] | 0 | Null-Terminator |
| OSC[6] | 0 | Null-Terminator |
| OSC[7] | 0 | Null-Terminator |
| OSC[8] | , | Argumenten-Delimiter |
| OSC[9] | i | Typ Int32 |
| OSC[10] | i | Typ Int32 |
| OSC[11] | i | Typ Int32 |
| OSC[12] | 0 | Null-Terminator |
| OSC[13] | 0 | Null-Terminator |
| OSC[14] | 0 | Null-Terminator |
| OSC[15] | 0 | Null-Terminator |
| OSC[16] | Int32 – Byte 1 / MSB | Status High Byte (Big-Endian) |
| OSC[17] | Int32 – Byte 2 | Status Byte 1 |
| OSC[18] | Int32 – Byte 3 | Status Byte 2 |
| OSC[19] | Int32 – Byte 4 / LSB | Status Low Byte (Big-Endian) |
| OSC[20] | Int32 – Byte 1 / MSB | Data 1 High Byte (Big-Endian) |
| OSC[21] | Int32 – Byte 2 | Data 1 Byte 1 |
| OSC[22] | Int32 – Byte 3 | Data 1 Byte 2 |
| OSC[23] | Int32 – Byte 4 / LSB | Data 1 Low Byte (Big-Endian) |
| OSC[24] | Int32 – Byte 1 / MSB | Data 2 High Byte (Big-Endian) |
| OSC[25] | Int32 – Byte 2 | Data 2 Byte 1 |
| OSC[26] | Int32 – Byte 3 | Data 2 Byte 2 |
| OSC[27] | Int32 – Byte 4 / LSB | Data 2 Low Byte (Big-Endian) |
OSC → GPO |
2-Byte Message |
|
|---|---|---|
| OSC[Index] | Inhalt / Bedeutung | Wert / Kommentar |
| OSC[0] | / | Start OSC-Pfad |
| OSC[1] | G | - |
| OSC[2] | P | - |
| OSC[3] | O | - |
| OSC[4] | / | Delimiter |
| OSC[5] | A | GPO PORT A–D |
| OSC[6] | 1 | GPO CHANNEL 1–8 als ASCII |
| OSC[7] | 0 | Null-Terminator |
| OSC[8] | , | Argumenten-Delimiter |
| OSC[9] | f | Typ Float32 |
| OSC[10] | 0 | Null-Terminator |
| OSC[11] | 0 | Null-Terminator |
| OSC[12] | Float32 – Byte 1 / MSB | Data 2 High Byte (Big-Endian) |
| OSC[13] | Float32 – Byte 2 | Data 2 Byte 1 |
| OSC[14] | Float32 – Byte 3 | Data 2 Byte 2 |
| OSC[15] | Float32 – Byte 4 / LSB | Data 2 Low Byte (Big-Endian) |
OSC → SERIAL |
3-Byte Message |
|
|---|---|---|
| OSC[Index] | Inhalt / Bedeutung | Wert / Kommentar |
| OSC[0] | / | Start OSC-Pfad |
| OSC[1] | S | - |
| OSC[2] | E | - |
| OSC[3] | R | - |
| OSC[4] | / | Delimiter |
| OSC[5] | 9 | Status High Nibble (0–F) |
| OSC[6] | 0 | Status Low Nibble (0-F) |
| OSC[7] | Leerzeichen | |
| OSC[8] | 6 | Data 1 High Nibble (0–7) |
| OSC[9] | 4 | Data 1 Low Nibble (0-F) |
| OSC[10] | 0 | Null-Terminator |
| OSC[11] | 0 | Null-Terminator |
| OSC[12] | , | Argumenten-Delimiter |
| OSC[13] | f | Typ Float32 |
| OSC[14] | 0 | Null-Terminator |
| OSC[15] | 0 | Null-Terminator |
| OSC[16] | Float32 – Byte 1 / MSB | Data 2 High Byte (Big-Endian) |
| OSC[17] | Float32 – Byte 2 | Data 2 Byte 1 |
| OSC[18] | Float32 – Byte 3 | Data 2 Byte 2 |
| OSC[19] | Float32 – Byte 4 / LSB | Data 2 Low Byte (Big-Endian) |
