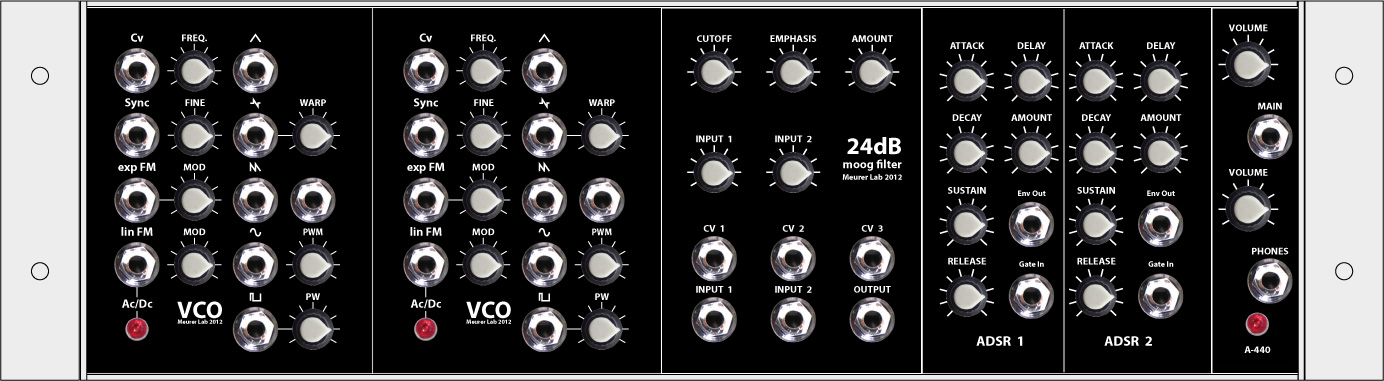

mLab microModular analogue Synthesizer

2 x VCO 20HP EuroRack module

Inputs

• Keyboard CV (V/Oct)
• OSC 2 Sync (pre-patched hard sync switch)
• Exponential Frequency Modulation
• Linear Frequency Modulation (pre-patched AC/DC couple switch)

Outputs

• Triangle waveform
• Warp (Tri/Saw waveform balanced output)
• Saw wave
• Sine wave
• Square wave

Conrols

• Frequency
• Fine Tune
• Exponentional FM
• Linear FM
• Warp (Tri/Saw balance)
• PWM Amount
• Pulse Width

Calibration

• CV SHIFT
• CV SCALE
• HI SCALE
• SINE BALANCE
• TRIANGLE EDGE
• SAW OFFSET

1 x VCF 24dB Model-D Filter module

Inputs

• CV1 (Cutoff Frequency)
• CV2 (Envelope Amount)
• CV3 (VCA Gain)
• Audio Input 1 Gain
• Audio Input 2 Gain

Outputs

• VCF Audio Output (internally pre-patched to VCA input)
• VCA Audio Output

Controls

• Cutoff Frequency
• Emphasis (Filter Resonance)
• Amount of contour
• Input 1 Gain
• Input 2 Gain

Calibration

• VCF CV SHIFT
• VCF CV SCALE
• VCF RESONANCE
• VCA BALANCE
• VCA OFFSET
• VCA GAIN

2 x Envelope Generator 20HP module

Inputs

• Gate In

Outputs

• Envelope control voltage output

Controls

• Attack Time
• Decay Time
• Sustain Level
• Release Time
• ADR Time Master
• Output Level (Envelope amount)

1 x MASTER

Outputs

• Main Out
• Phones Out

Controller

• Main Volume
• Phones Volume
• A-440Hz Generator On/Off

1 x MIDI IN

Controller

• Note, Pitch
