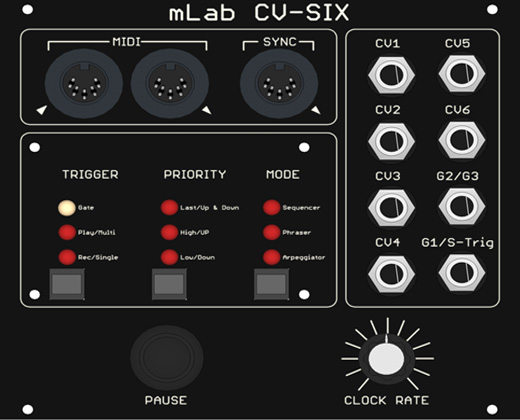

CvSix Analog Processor

Step Sequencer, Arpeggiator, MIDI to CV, Gate, DIN-Sync, Clock

Hand made in Germany
Available for 398,- €
Orders are welcome

Downloads:
Owners Manual

RealTime MIDI-Sync manual

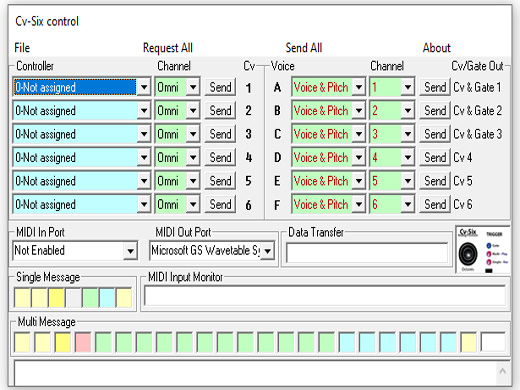

Control map manager for windows

---

CvSix Analog Processor Silver Face

Hardware:

• 6 x analog CV OUT
• 3 x analog GATE OUT
• 1 x analog S-Trigger OUT
• 1 x analog DIN-Sync
• 1 x MIDI IN / OUT

Functions:

• Realtime MIDI to CV Interface
• Step Sequencer with up to 100 Notes, Pauses, Transpose.
• RealTime Arpeggiator Hold & Transpose, Octave, Up, Down, Up/ Down.
• RealTime Phraser Hold & Transpose, Forward, Backward, Fwd / Bwd.

MIDI Controller Routing. ( Each CV OUT can be controlled by)

• any MIDI cc#
• Velocity
• AfterTouch
• Pitch and/or NoteNumbers on any MIDI Channel.

MIDI Sync.

• The Step Sequencer, as well as the Arpeggio or Phrase
  starts, stops and runs synchronously with incoming MIDI Clock.
• Sync Delay gives your arrangement the perfect groove.
• Sync Rate can be set to 1/2, 1/3, 1/4, 1/6, 1/8, 1/12, 1/16, 1/24, 1/32
• DIN-Sync OUT slaves through incoming MIDI Start, Stop, Clock messages.

USB power or external 9V DC 300mA supply (+ Center)

---

CvSix Analog Processor Black Face

---

CvSix Analog Processor Modular Unit

Cv-Six in action

We also do modifications and repair
don't hesitate to contact us for service
